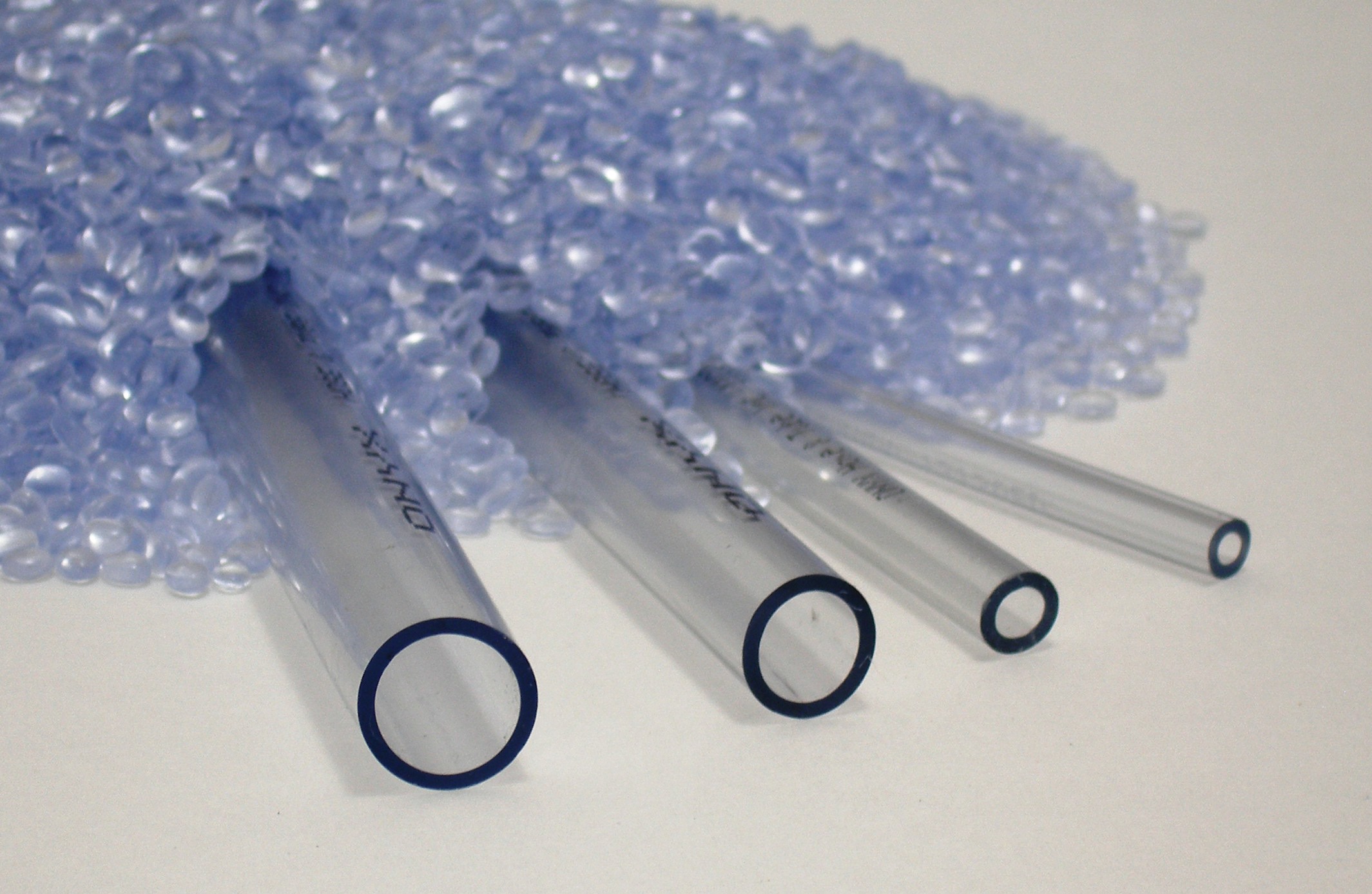

1100 Series NSF-51 Certified Clear PVC Tubing, 80A


Tube

Clear 80A (+/-3) FDA Grade PVC

Reinforcement

No

jacket

None

Temp range

+25 F to +150 F
-5 C to +65 C

Ratings

NSF-51 Certified, USP Class VI Rated Compound, FDA Ingredients, Self Extinguishing


Item NumberIDODWall*Max WPColorPackaging
1100.0204.1001 1/8 1/40.06265 PSIClear100 ft Box
1100.0304.1001 3/16 1/40.03250 PSIClear100 ft Box
1100.0305.1001 3/16 5/160.06255 PSIClear100 ft Box
1100.0306.1001 3/16 3/8 0.09460 PSIClear100 ft Box
1100.0406.1001 1/4 3/8 0.06255 PSIClear100 ft Box
1100.0407.1001 1/4 7/160.09458 PSIClear100 ft Box
1100.0408.1001 1/4 1/2 0.12560 PSIClear100 ft Box
1100.0507.1001 5/16 7/160.06250 PSIClear100 ft Box
1100.0508.1001 5/16 1/2 0.09455 PSIClear100 ft Box
1100.0509.1001 5/16 9/160.12560 PSIClear100 ft Box
1100.0608.1001 3/8 1/2 0.06245 PSIClear100 ft Box
1100.0609.1001 3/8 9/160.09450 PSIClear100 ft Box
1100.0610.1001 3/8 5/8 0.12555 PSIClear100 ft Box
1100.0709.1001 7/16 9/160.06235 PSIClear100 ft Box
1100.0810.1001 1/2 5/8 0.06230 PSIClear100 ft Box
1100.0811.1001 1/2 11/160.09440 PSIClear100 ft Box
1100.0812.1001 1/2 3/4 0.12545 PSIClear100 ft Box
1100.1012.1001 5/8 3/4 0.06225 PSIClear100 ft Box
1100.1013.1001 5/8 13/160.09435 PSIClear100 ft Box
1100.1014.1001 5/8 7/8 0.12540 PSIClear100 ft Box
1100.1216.1000 3/4 10.12535 PSIClear100 ft Coil
1100.1418.1000 7/8 1 1/8 0.12530 PSIClear100 ft Coil
1100.1620.100011 1/4 0.12525 PSIClear100 ft Coil
1100.2024.10001 1/41 1/2 0.12520 PSIClear100 ft Coil
1100.2430.10001 1/21 7/8 0.18730 PSIClear100 ft Coil
1100.2432.10001 1/220.2535 PSIClear100 ft Coil
1100.3240.100022 1/2 0.2530 PSIClear100 ft Coil

* Working pressures shown are based at +68 F/+20 C
