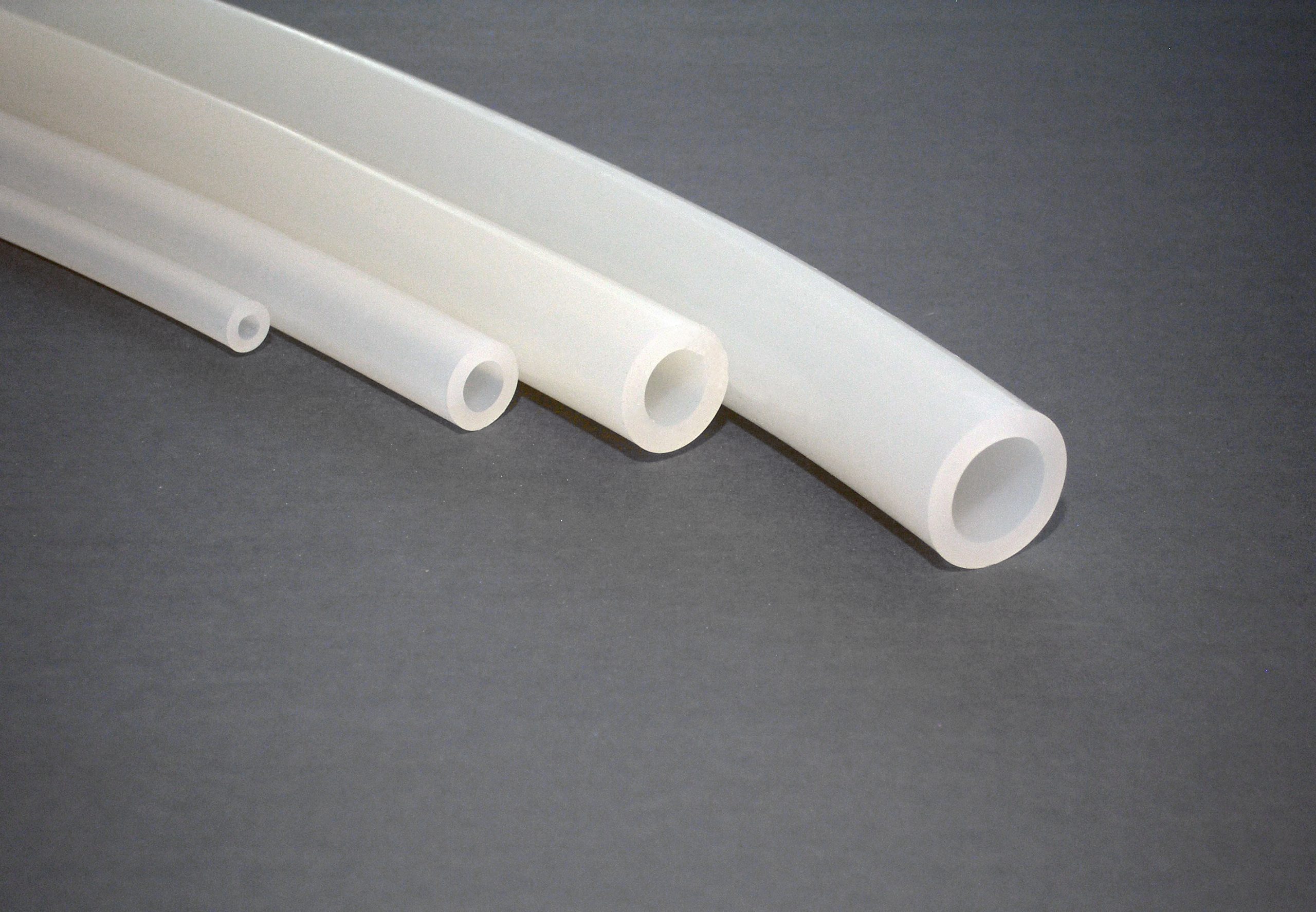

8100 Series NSF-51 Certified Silicone Tubing
Tube
Translucent natural 50A (+/-3) NSF-51 Certified Silicone
Reinforcement
No
jacket
None
Temp range
-100 F to +500 F
-73 C to +260 C
Ratings
NSF-51 Certified, USP Class VI Rated Compound, FDA Ingredients, Self Extinguishing
| Item Number | ID | OD | Wall | *Max WP | Color | Packaging |
|---|---|---|---|---|---|---|
| 8100.0102.1001 | 1/16 | 1/8 | .031 | 10 PSI | Natural | 100 ft Box |
| 8100.0204.1001 | 1/8 | 1/4 | .062 | 20 PSI | Natural | 100 ft Box |
| 8100.0304.1001 | 3/16 | 1/4 | .032 | 5 PSI | Natural | 100 ft Box |
| 8100.0305.1001 | 3/16 | 5/16 | .062 | 20 PSI | Natural | 100 ft Box |
| 8100.0306.1001 | 3/16 | 3/8 | .094 | 20 PSI | Natural | 100 ft Box |
| 8100.0406.1001 | 1/4 | 3/8 | .062 | 5 PSI | Natural | 100 ft Box |
| 8100.0407.1001 | 1/4 | 7/16 | .094 | 20 PSI | Natural | 100 ft Box |
| 8100.0408.1001 | 1/4 | 1/2 | .125 | 15 PSI | Natural | 100 ft Box |
| 8100.0507.1001 | 5/16 | 7/16 | .062 | 10 PSI | Natural | 100 ft Box |
| 8100.0508.1001 | 5/16 | 1/2 | .094 | 10 PSI | Natural | 100 ft Box |
| 8100.0608.1001 | 3/8 | 1/2 | .062 | 10 PSI | Natural | 100 ft Box |
| 8100.0609.1001 | 3/8 | 9/16 | .094 | 10 PSI | Natural | 100 ft Box |
| 8100.0610.1001 | 3/8 | 5/8 | .125 | 10 PSI | Natural | 100 ft Box |
| 8100.0810.1001 | 1/2 | 5/8 | .062 | 5 PSI | Natural | 100 ft Box |
| 8100.0811.1001 | 1/2 | 11/16 | .094 | 5 PSI | Natural | 100 ft Box |
| 8100.0812.1001 | 1/2 | 3/4 | .125 | 10 PSI | Natural | 100 ft Box |
* Working pressures shown are based at +68 F/+20 C
